Milano Alpha - Anthracite Flat Panel Vertical Designer Radiator - 1600mm x 350mm (Single Panel)
SKU
DRASP2
Heat your home in style with the Milano Alpha 1600mm x 350mm anthracite vertical designer radiator.
Featuring a tall slim design to maximise space, this designer radiator has been crafted from premium quality steel for guaranteed durability. The hard-wearing anthracite powder coated finish creates a contemporary on-trend look, while the sleek flat panels enhance a minimalist interior perfectly.
A great choice for modern homes, the Alpha radiator will bring sophisticated style to your bathroom, kitchen, living room or bedroom, or anywhere it is placed. It boasts an excellent hourly heat output, so you can be assured your chosen room will feel warm, welcoming and cosy in no time at all.
Alpha Designer Radiator Features:
- Dimensions: 1600mm x 350mm x 47mm
- 2771 BTU’s (812 Watts)
- High quality anthracite powder coated finish
- Features 5 vertical single panels
- Built to last: 1.5mm thick steel for guaranteed quality
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug

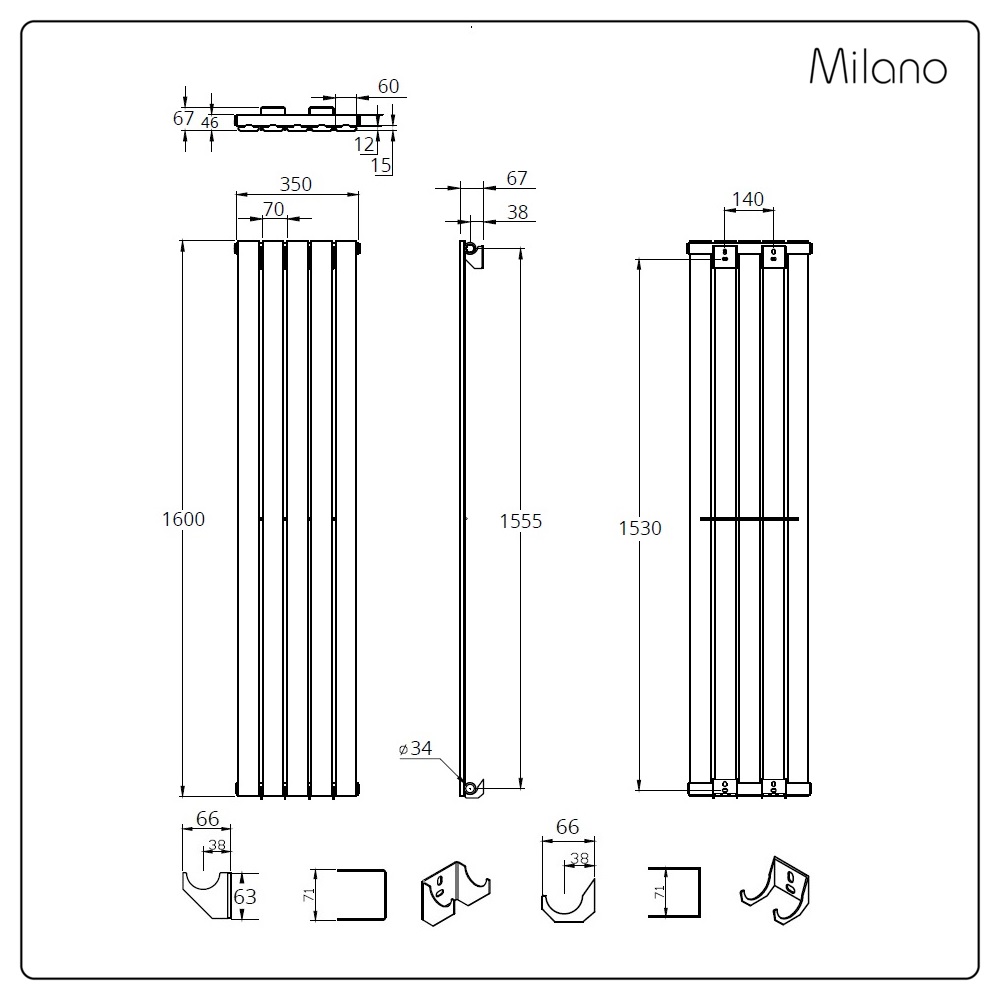

Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Determine your room's heating requirements with our BTU Calculator
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Alpha |
| Style | Modern |
| Finish | Anthracite |
| RAL Code | 7016 |
| Specifications | |
|---|---|
| Width (mm) | 350 |
| Height (mm) | 1,600 |
| Depth (mm) | 46 |
| Projection (mm) | 67 |
| Floor to Centre of Tapping (mm) | Min. 300 |
| Wall to Centre Tapping (mm) | 38 |
| Pipe Centres (mm) | 440 (approx.) |
| Watts at Delta T30 | 301 |
| Watts at Delta T50 | 580 |
| Watts at Delta T65 | 812 |
| BTU at Delta T30 | 1025 |
| BTU at Delta T50 | 1977 |
| BTU at Delta T65 | 2771 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 4.3 |
| Product Weight (kg) | 12.8 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type | Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| Guarantee | 20 Years |
| Certification | CE, EN442 |
