Milano Alpha - White Flat Panel Vertical Designer Radiator - 1780mm x 490mm (Single Panel)
SKU
TDRWSP4
The Milano Alpha 1780mm x 490mm vertical designer radiator features a white powder coated finish that teams well with any décor and sleek flat panels for a minimal look.
The perfect choice for modern homes, this designer radiator will bring sophisticated style to your bathroom, kitchen, living room or bedroom. The premium quality steel construction combined with the durable white finish gives you a radiator that will perform and look like new for years to come.
Featuring a tall vertical design to maximise space, the Alpha radiators produces an excellent heat output to ensure your chosen room feels warm, cosy and inviting in no time at all.
Alpha Designer Radiator Features:
- Dimensions: 1780mm x 490mm x 47mm
- 4357 BTU’s (1277 Watts)
- High quality white powder coated finish
- Features 7 vertical single panels
- Built to last: 1.5mm thick steel for guaranteed quality
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug

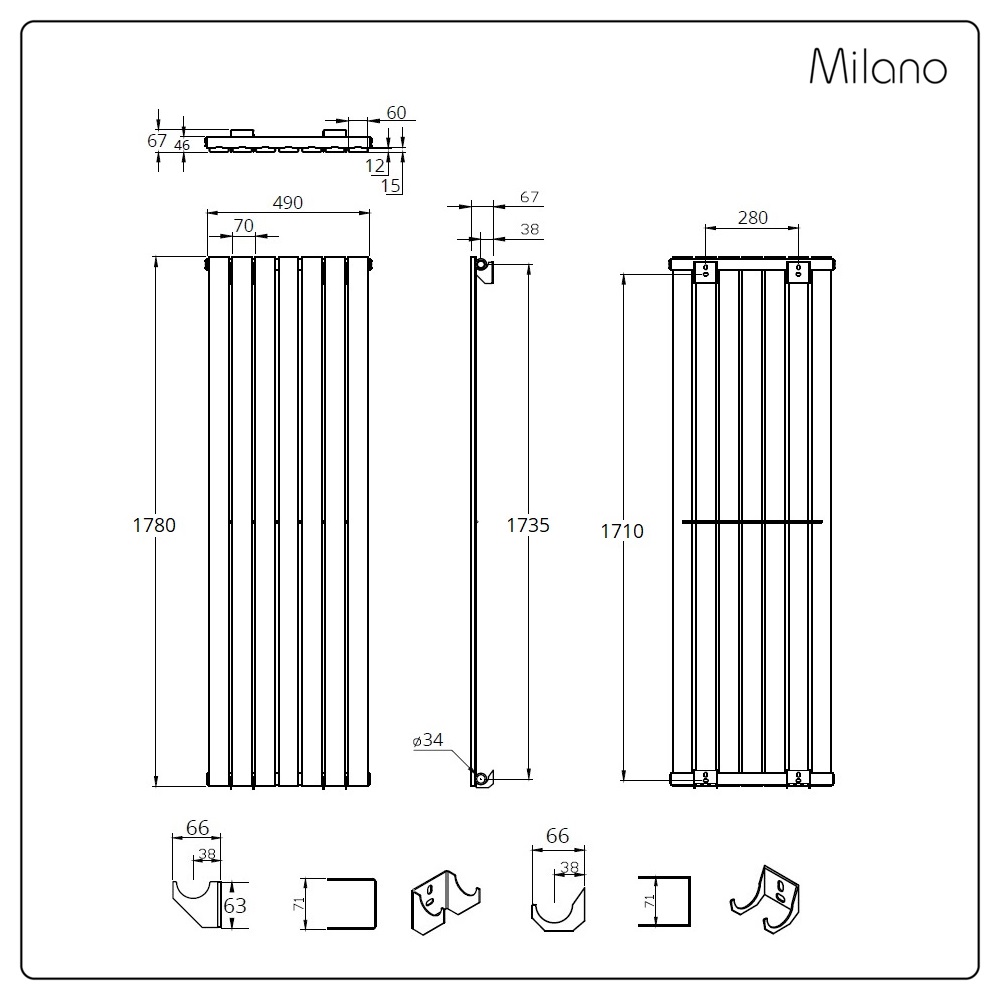

Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Determine your room's heating requirements with our BTU Calculator
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Alpha |
| Style | Modern |
| Finish | White |
| RAL Code | 9016 |
| Specifications | |
|---|---|
| Width (mm) | 490 |
| Height (mm) | 1,780 |
| Depth (mm) | 46 |
| Projection (mm) | 67 |
| Floor to Centre of Tapping (mm) | Min. 300 |
| Wall to Centre Tapping (mm) | 38 |
| Pipe Centres (mm) | 580 (approx.) |
| Watts at Delta T30 | 472 |
| Watts at Delta T50 | 911 |
| Watts at Delta T65 | 1277 |
| BTU at Delta T30 | 1610 |
| BTU at Delta T50 | 3107 |
| BTU at Delta T65 | 4357 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 7.4 |
| Product Weight (kg) | 19.94 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type | Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| Guarantee | 20 Years |
| Certification | CE, EN442 |
